High Limit Triple Horizontal Mount Aquastat Relay, 10 Degree F High, 10-25 Degree F Low
$411.32
In stock
SKU
1667
High Limit Triple Horizontal Mount Aquastat Relay 10 Degree F High 10-25 Degree F Low
Description
Details

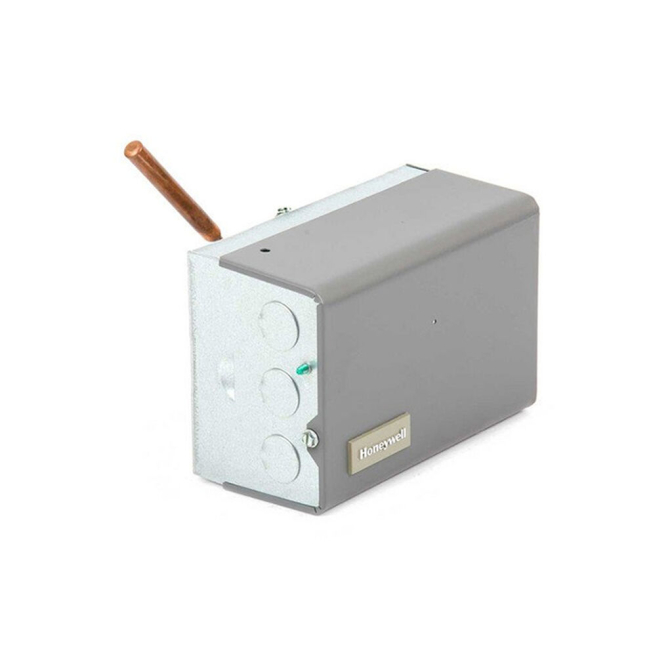

Honeywell Aquastat Relay, Triple, 24 to 120 VAC, 130 to 240 degree Fahrenheit, 10 to 25 degree Fahrenheit Differential, Horizontal Mount, Micro Switch Switch, 3 inch Insulation Depth, 0 to 95% Humidity
Immersion-type controllers that combine high limit protection with low limit and circulator control inch forced hydronic heating systems, including hot water service.
Features
Features
Temperature Rating: 130 to 240 deg F
Primary Voltage: 24 to 120 VAC
Warranty: Limited
Differential: 10 to 25 deg F
Domestic/Import: Domestic
Humidity Range: 0 to 95%
Insulation Depth: 3 in
Immersion type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems
Provide multizone control by using a separate circulator and R845 Relay for each zone
Include diaphragm powerhead and Micro Switch assembly that respond to temperature changes in boiler water
Mount directly to boiler
Select models include large transformers and extra terminals for supplying power to low voltage zone valves
Require 24 VAC thermostat with heat anticipator set at 0.2 A (plus current draw of gas valves on L8124E)
TRADELINE® models include tube of heat conductive compounds and range stops
