High Limit Vertical Mount Aquastat Relay, 15 Degree F Differential
$388.94
In stock
SKU
188819
High Limit Vertical Mount Aquastat Relay 15 Degree F Differential
Description
Details

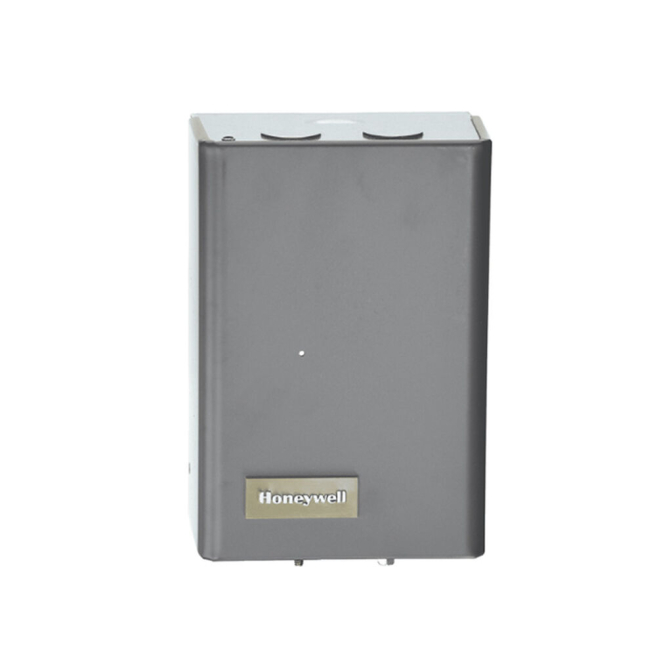

Honeywell Aquastat Relay, 120 VAC, 180 to 240 degree Fahrenheit, 15 degree Fahrenheit Differential, Vertical Mount, 1-1/2 to 3 inch Insulation Depth, 0 to 95% Humidity
The L8148 Aquastat Relays are immersion type hydronic controllers that combine high limit protection with switching relay control of burner and circulator motors.
Features
Features
Temperature Rating: 180 to 240 deg F
Primary Voltage: 120 VAC
Warranty: Limited
Differential: 15 deg F
Humidity Range: 0 to 95%
Insulation Depth: 1-1/2 to 3 in
Immersion type controllers that combine high limit protection with switching relay control of burner and circulator motors
High limit opens burner circuit only
Select models include transformer and accessory terminals for adding a remote low limit controller
Case available for horizontal or vertical mounting
Require 24 VAC thermostat with heat anticipator set at 0.2 A (plus current draw of gas valves on L8124E)
TRADELINE® models include well adapter tube of heat conductive compounds and range stops
