High or Low Limit and Circulator, Horizontal Mount Aquastat, 100-240 Degree F range, 5-30 Degree F Differential
$191.71
In stock
SKU
1664
High or Low Limit and Circulator Horizontal Mount Aquastat 100-240 Degree F range 5-30 Degree F Differential
Description
Details

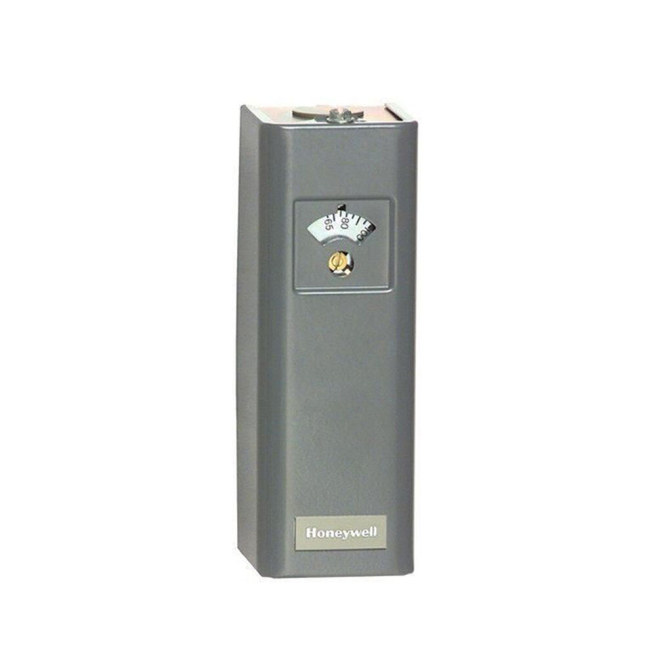

Honeywell Aquastat Controller, High and Low limit, 120 to 240 VAC/0.25 to 12 VDC, 100 to 240 degree Fahrenheit, 5.1 to 48 A, 5 to 30 degree Fahrenheit Differential, Horizontal Mount, 3/8 x 2-7/8 inch Copper Bulb, Micro Switch Snap-Acting Switch
Aquastat Controllers are immersion type devices for limiting or regulating the temperature of liquids inch boilers, storage tanks and other applications where temperature control is required.
Features
Features
Amperage Rating: 5.1 to 48 A
Temperature Rating: 100 to 240 deg F
Primary Voltage: 120 to 240 VAC/0.25 to 12 VDC
Warranty: Limited
Bulb Size: 3/8 x 2-7/8 in Copper
Differential: 5 to 30 deg F
Domestic/Import: Import
Totally enclosed Micro Switch snap acting switches operate on temperature rise to set point
Visible control point scale and external adjustments screw permit easy setting
Horizontal or vertical insertion of the sensing element
Direct, well immersion, or surface mounting of the sensing element available
Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
Direct or well immersion TRADELINE® models include heat conductive compounds
