High or Low Limit Aquastat, 100-240 Degree F range, 5-30 Degree F Differential
$182.48
In stock
SKU
1660
High or Low Limit Aquastat 100-240 Degree F range 5-30 Degree F Differential
More Information
Diameter
1/4"ID (3/8"
Description
Details

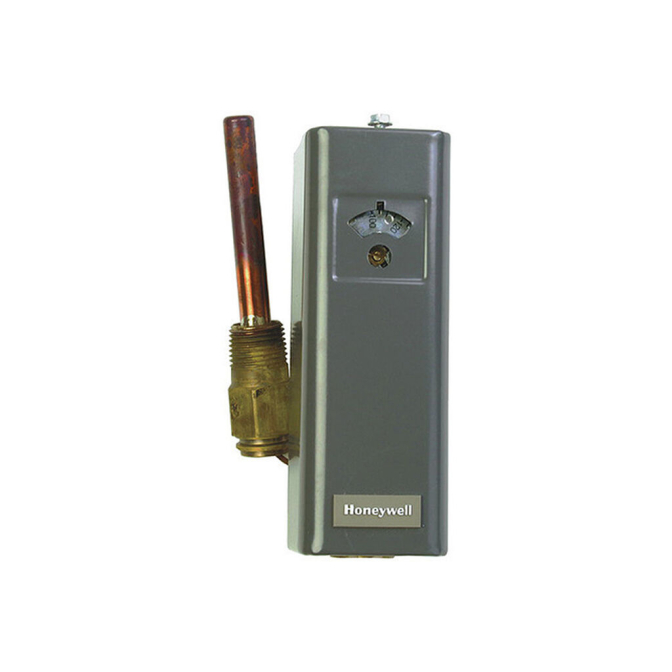

Honeywell Aquastat Controller, Breaks on Rise, 120 to 240 VAC/0.25 to 12 VDC, 100 to 240 degree Fahrenheit, 5.1 to 48 A, 5 to 30 degree Fahrenheit Differential, Horizontal/Vertical Mount, 3/8 x 2-7/8 inch Copper Bulb, Micro Switch Snap-Acting Switch
Aquastat Controllers are immersion type devices for limiting or regulating the temperature of liquids inch boilers, storage tanks and other applications where temperature control is required. Honeywell's L4006 are used inch applications that utilize the existing wells.
Features
Features
Amperage Rating: 5.1 to 48 A
Temperature Rating: 100 to 240 deg F
Primary Voltage: 120 to 240 VAC/0.25 to 12 VDC
Warranty: Limited
Bulb Size: 3/8 x 2-7/8 in Copper
Differential: 5 to 30 deg F
Totally enclosed Micro Switch snap acting switches operate on temperature rise to set point
Visible control point scale and external adjustments screw permit easy setting
Horizontal or vertical insertion of the sensing element
Direct or well immersion of the sensing element
Models available for strap-on mounting
Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
TRADELINE® models include heat conductive compounds
