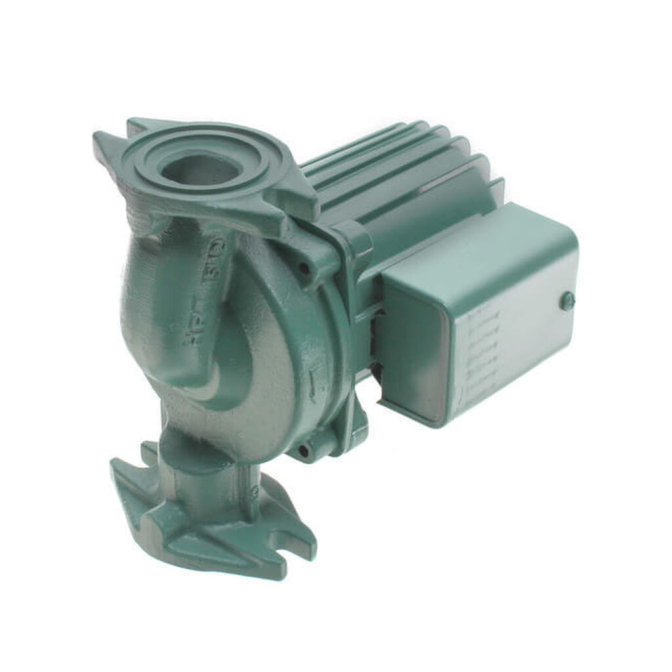

High Velocity Cast Iron Circulator, 1/8 HP

Features

• Frequency Rating: 60 Hz
• Maximum Head: 22 ft
• Maximum Pressure: 150 psi
• Motor Speed: 3250 rpm
• Power Rating: 1/8 hp
• Type: High Velocity
• Voltage Rating: 115 VAC
• Dimensions: 5-3/8 in W x 7-1/4 in D x 6-1/2 in H
  • Exclusive anti-condensate baffle (ACB) with ambient air flow
  • No mechanical seal
  • Unmatched reliability-maintenance free
  • Universal flange to flange dimensions
  • For indoor use only
  • Low-lead compliant
  • Construction: cast Iron casing (volute), aluminum stator housing, stainless steel cartridge, non-metallic impeller, ceramic shaft, carbon bearings, EPDM O-ring and gaskets
  • Impedance protected permanent split capacitor motor
  • 1 ph
  • 3/4, 1, 1-1/4, 1-1/2 in flanged connection
  • Protects motor windings against condensate buildup
  • High velocity performance
  • Compact design
  • Quiet, efficient operation
  • Unique replaceable cartridge design
  • Field serviceable
  • Direct-drive low power consumption
  • Self lubricating
