Hollow Cone Oil Burner Nozzle Type B 0.6 gph 70 Degree
More Information
Material
Brass
Description
Details

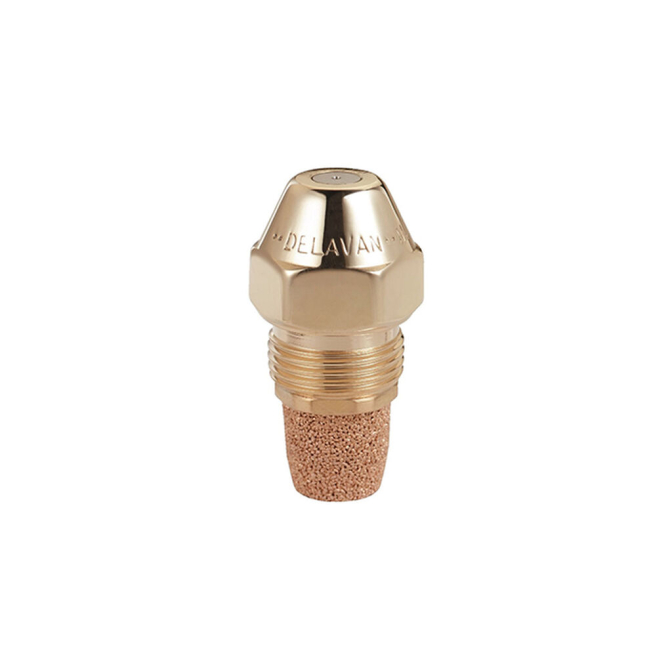

Delavan Oil Burner Nozzle, Type B Solid Cone, 0.6 gph, 70 degree, Brass
At the forefront of nozzle development, Delavan created its nozzle using bi-metal construction. The Brass body and stainless steel metering parts permit machining to close tolerances for precision and consistently high performance. Brass transmits heat fast from the nozzle face to reduce the possibility of varnish and oil residue buildup. Stainless steel provides that extra durability for metering parts where wear is a factor.
Features
Features
Type B nozzles produce a spray that distributes droplets fairly uniformly throughout the complete pattern
The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8 gph
Provides smooth ignition and efficient combustion, particularly in larger burners
