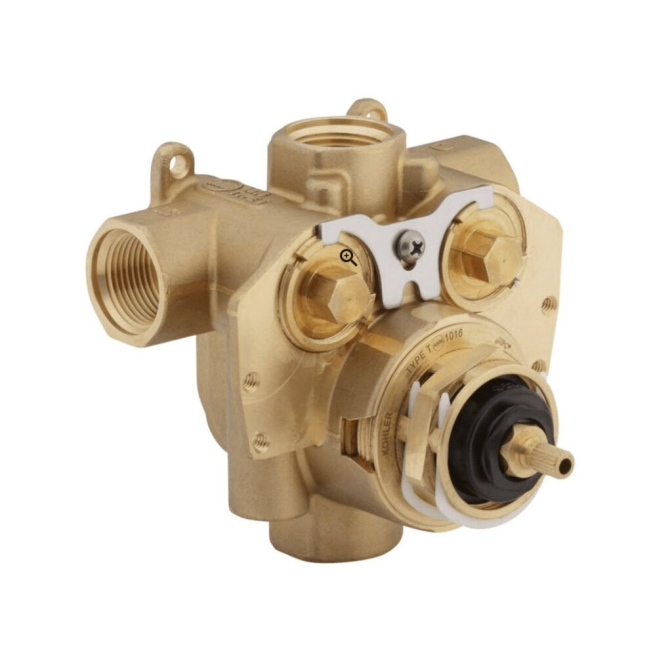

Take showering beyond the ordinary with this 3/4-inch MasterShower thermostatic valve. When paired with compatible trim, this valve delivers a high-temperature limit stop for added safety and a high-flow rate for precise, consistent temperature control.
Features
Features
MasterShower thermostatic valve features an innovative shuttle design that delivers precise, consistent temperature control and a generous flow rate
High-flow thermostatic mixing valve
Single handle temperature control
17.2 gpm flow rate at 45 psi
3/4 in female NPT inlet connections and (2) 3/4 in female NPT outlet connections
Service stops with integral filters
Integrated adjustable high temperature limit stop to control Codes/Standards maximum water temperature
Forged de-zincification-resistant brass body provides long term reliability and resistance to aggressive water conditions
Advanced materials selected for resistance to seizing or attack from aggressive water conditions
Fully-serviceable from the front of the valve
Cartridge is reversible for installations where hot and cold supplies are reversed
Thermostatic valve allows bather to set and maintain precise temperature
Requires K-9663 twin ell (sold separately) when using a diverter bath spout
Factory calibrated comfort setting at 104 degrees Fahrenheit
High-temperature safety stop ensures that water temperature stays below 120 degrees Fahrenheit
Patented K-joint installation ensures consistent trim appearance, regardless of variability in valve rough-in (included with trim)
17.2 gpm (gallons per minute) high-flow rate is ideal for multiple outlet installations or rapid bath filling
3/4-inch inlet with NPT connection
Requires thermostatic valve trim (sold separately)
Requires a separate volume control valve (K-2977-K) for each bath and/or shower outlet (sold separately)
