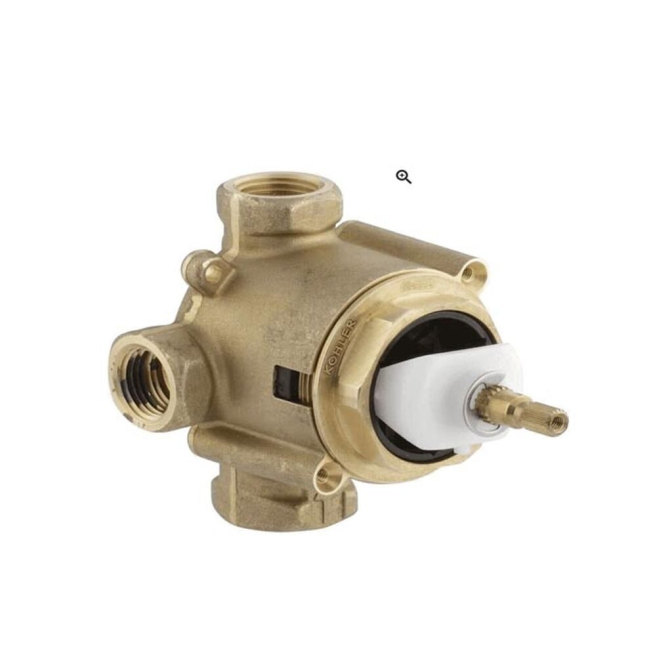

Kohler K728-K-NA, 2- or 3-Way Transfer Valve, MasterShower Collection
$199.16
In stock
SKU
1914800
Kohler K728-K-NA 2- or 3-Way Transfer Valve MasterShower Collection
More Information
Material
Brass
Description
Details
Kohler Transfer Valve Trim, Collection: MasterShower, 18 gpm, 3/4 inch NPT Inlet Connection, 1/2 inch NPT Outlet, Brass, 3-15/16 inch length x 3-3/8 inch Width x 3-5/8 inch H
The MasterShower transfer valve brings a new level of innovation and flexibility as a custom shower solution. When paired with compatible trim, its three-way design allows control of up to three separate components to six different outputs and can also easily be configured as a two-way transfer valve.
Features
Features
MasterShower transfer valve ships as a three-way transfer valve, but can easily be configured for use as a two-way transfer valve
Patented K-joint installation ensures consistent trim appearance, regardless of variability in valve rough in (included with trim)
Required transfer valve trim works in both two -and three-way applications
Controls all functions from a single valve
18 gpm flow rate when using one outlet and 20.8 gpm flow rate when using two outlets
3/4 in NPT inlet connection and three 1/2 in NPT outlet connections
Requires transfer valve trim (sold separately)
Outlet Connection: 1/2 in NPT
Dimensions: 3-15/16 in L x 3-3/8 in W x 3-5/8 in H
