Oil Burner Primary Control with 15 Second Pre-Purge, Replaces R7184B Relay Controls
$104.18
Oil Burner Primary Control with 15 Second Pre-Purge Replaces R7184B Relay Controls
More Information | Diameter | 3" x 3" x 1-1/2" x 1-1/2" |
|---|
Description
Details

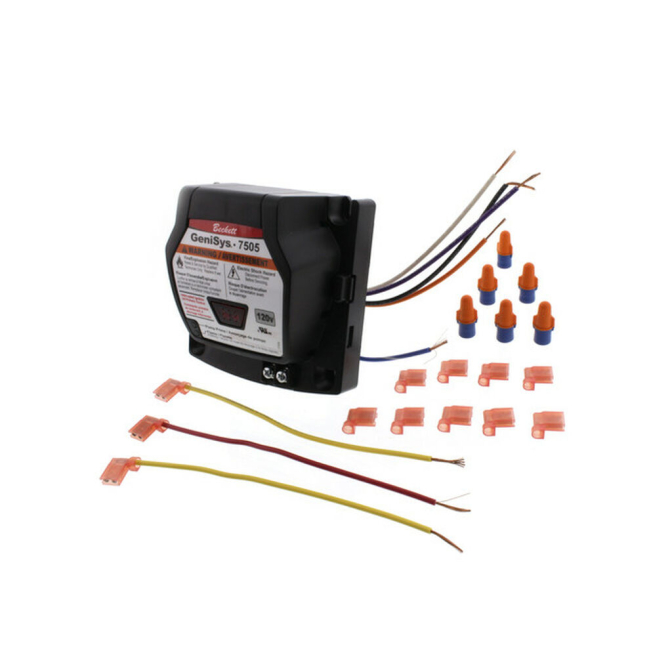

Beckett 7505B1500U GeniSys Burner Control with 15 Sec Lockout, 120VFeatures
Features
- Lockout Time: 15 sec
- Technician pump prime mode
- Valve-on delay time: 15 sec
- Thermostat and boiler control compatible
- Programmable valve-on delay and motor-off delay
- Three indicator lights for system monitoring and diagnostics
- Two communication ports for adding alarm contacts, programming display, and/or future wireless communications
- Welded relay protection with redundant motor relays
- Limited reset and limited recycle
- Sleek, modern design
