Terminal Designations: RC, R, C, W, W2 - AUX, Y, Y2, O/B, G, K, E, L/A, S, S
Control Range: 40 to 90 deg F (Heat)/50 to 99 deg F (Cool)
Differential: 1 deg F
Dimensions: 4-1/16 in L x 4-1/16 in W x 1-3/32 in D
Includes: Thermostat, UWP Mounting System, Installation (J-box) Adaptor, Small Decorative Cover Plate, Screw and Anchor, Installation Guide, User Guide and (2) AA Batteries
Display Size: 5.44 sq-in

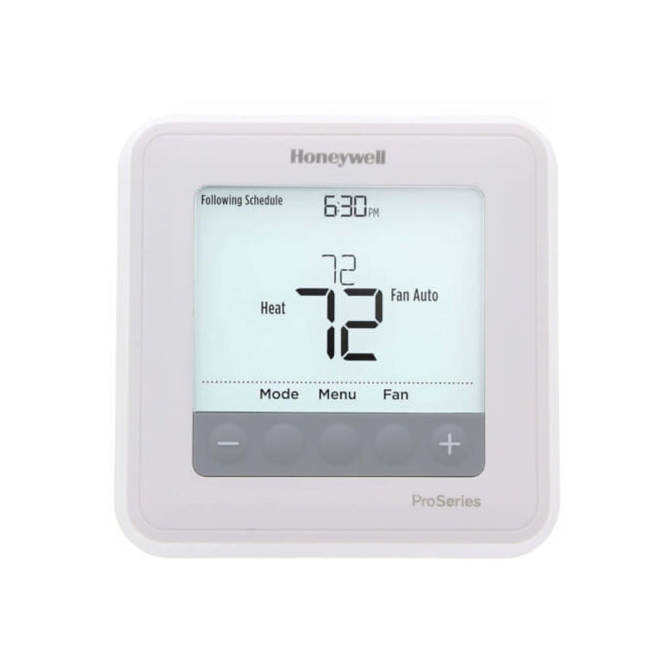

Large display, soft key controls
Ambient air temperature control mode selection
Auto or manual changeover
32 to 120 deg F ambient temperature
-20 to 120 shipping and storage temperature
37 to 102 deg F operating temperature
Switch type: Relay
0.02 to 0.05 A fan current
5 to 90% RH, non-condensing humidity
Stages: Up to 2 heat/1 cool heat pumps and up to 2 heat/2 cool conventional system
