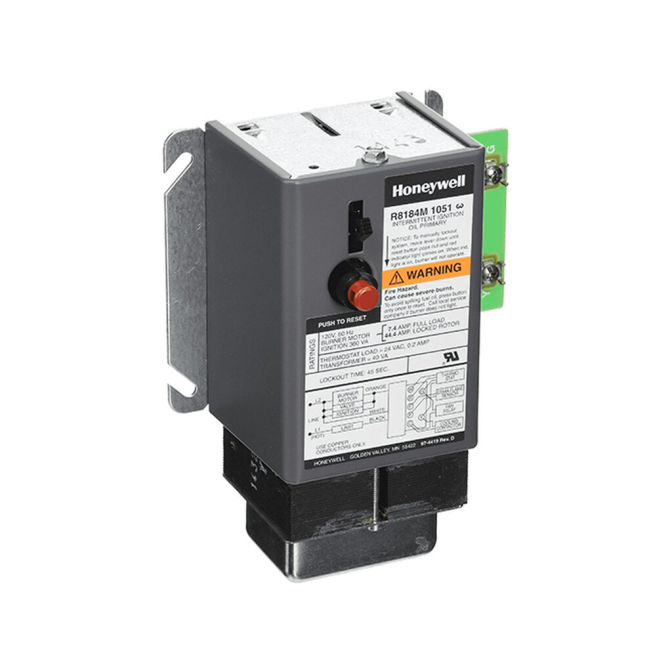

Protectorelay Oil Burner Relay with Lock Out Timing, 4" x 4" Junction Box
$256.70
In stock
SKU
1692
Protectorelay Oil Burner Relay with Lock Out Timing 4 inch x 4 inch Junction Box
Description
Details
Honeywell Protectorelay Oil Burner Control, 120 to 240 VAC, 3.7 to 7.4 A, Intermittent Ignition, -40 to 130 degree Fahrenheit, Junction Box Mount, 4-3/8 inch height x 4 1/8 inch Width x 2 1/2 inch D
The TRADELINE intermittent ignition oil primary control operates the oil burner, oil valve (if desired) and the ignition transformer inch response to a call for heat from the thermostat. Through a C554 Cad Cell Flame Sensor, the R8184 monitors the burner flame and shuts down the system on ignition failure or on flame failure during the run cycle. A light emitting diode (LED) on the terminal strip lights when the safety switch opens to provide safety shutdown indication. A manual reset button is provided to reset the safety switch after lockout. For convenience inch system maintenance, the safety switch can be manually opened using a lever on the front of the control. Clock thermostats that power the clock through the primary control transformer will lose time during lockout unless backup batteries are installed.
Features
Features
Amperage Rating: 3.7 to 7.4 A
Temperature Rating: -40 to 130 deg F
Primary Voltage: 120 to 240 VAC
Warranty: Limited
Height: 4-3/8 in
Width: 4 1/8 in
Depth: 2 1/2 in
Domestic/Import: Domestic
Operates the oil burner and oil valves (if desired) in response to a call for heat from a low voltage control circuit
Intermittent ignition is on while the burner is on
Solid state flame sensing circuit
External button to manually reset safety switch after lockout
Enclosed safety switch must be manually reset after safety shutdown
R8184M includes 40 VA transformer and Y and G terminals for connection of cooling equipment
Mounts on standard 4 x 4 in junction box
C554A cadmium sulfide flame detector and 24 VAC thermostat required
