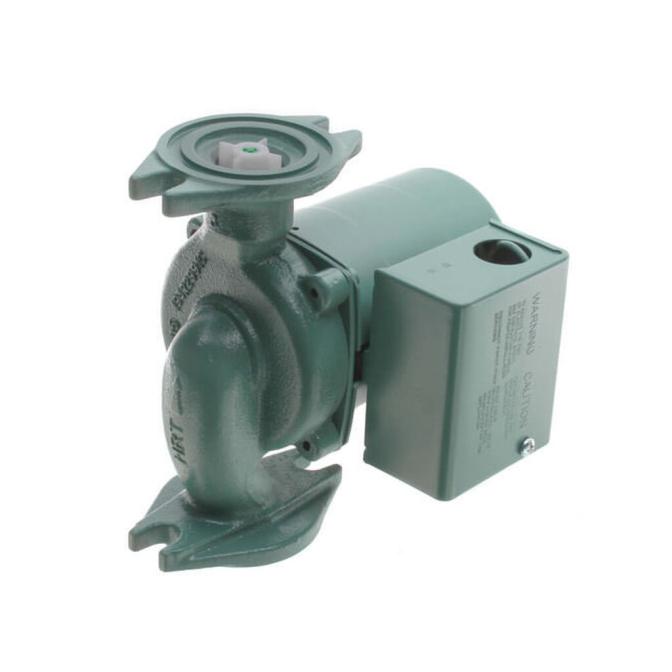

Taco Cartridge Circulator Pump, Single Phase, Series 0015, 18 gpm, 17 feet Maximum Head, 1/20 hp, 115 VAC, 0.54 to 0.85 A, 60 Hz, 125 psi Maximum, 3250 rpm Motor, 40 to 230 degree Fahrenheit, 6-1/2 inch length x 6-3/8 inch H
The Taco Family of 3-Speed pumps are built to the exacting standards you've come to expect from Taco. Everything that goes into the 0015-IFC 3-Speed - from the powerful, high performance motor to the durable 3-speed switch - says with the highest starting torque inch its class, this circulator delivers the performance and fine tuning capabilities sure to satisfy the most demanding hydronic system installer. Now available inch Stainless Steel for use inch potable water systems.
Features
Features
Frequency Rating: 60 Hz
Maximum Head: 17 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Power Rating: 1/20 hp
Type: Single Phase
Voltage Rating: 115 VAC
Dimensions: 6-1/2 in L x 6-3/8 in H
3 speed switch
Quiet, efficient operation
Self lubricating, no mechanical seal
Wide range of applications
The 0015 3-Speed pump is specifically designed for the wide range of flow and head requirements of today's hydronic heating systems
Its 3 speed switching capability provides fine tuning control to match a wide combination of tube diameters and length of runs
The 0015 3 speed is a direct replacement for the Grundfos UPS 15-58 3-Speed
The 0015 delivers the highest starting torque in its class and includes a removable, uni-body Integral Flow Check (IFC ) that prevents gravity flow, reduces installation costs and improves pump performance
The Stainless Steel 0015 should be used on open, fresh water systems and replaces Grundfos UPS 15-35FC and 15-55FC
