Single Phase Cartridge Circulator Pump, 8 gpm, 115 VAC
$476.31
In stock
SKU
25596
Single Phase Cartridge Circulator Pump 8 gpm 115 VAC
More Information
Diameter
3/8" x 1/2"
Description
Details

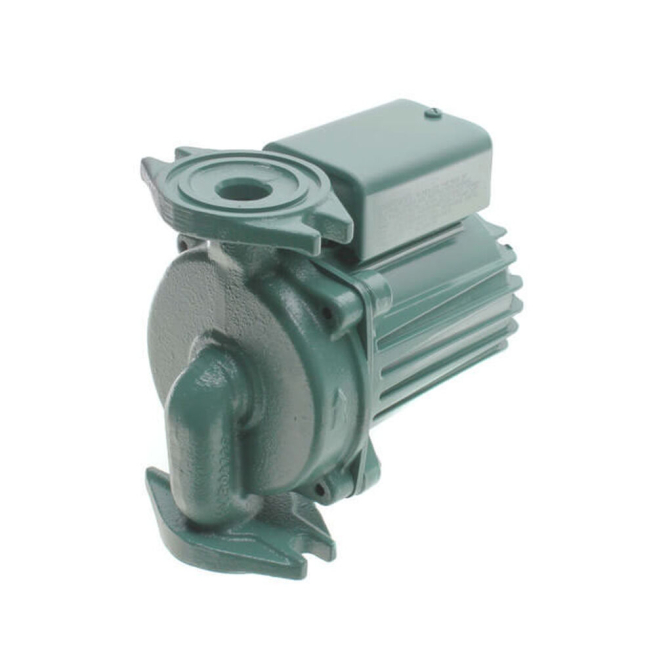

Taco Cartridge Circulator Pump, Single Phase, Series 009, 8 gpm, 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch Flanged inlet, 34 feet Maximum Head, 1/8 hp, 115 VAC, 1.40 A, 60 Hz, 125 psi Maximum, 3250 rpm Motor, 7 inch length x 4-1/8 inch Width x 6-3/8 inch H
The High Velocity Series Taco 009 Cartridge Circulator is designed for quiet, efficient operation inch higher-head/lower-flow applications for Hydronic heating, Radiameternt inch-Floor/Panel heating, Solar heating, Heat Recovery, and Water Recirculation systems. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. with no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Available inch Cast Iron or Bronze construction.
Features
Features
Frequency Rating: 60 Hz
Inlet Size: 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged
Maximum Head: 34 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Power Rating: 1/8 hp
Type: Single Phase
Voltage Rating: 115 VAC
Dimensions: 7 in L x 4-1/8 in W x 6-3/8 in H
Typical uses include hydronic heating, radiant in-floor/panel heating and closed-loop solar heating systems
No mechanical seal
Unmatched reliability-maintenance free
Universal flange to flange dimensions
Cast iron or bronze construction
Cast iron or bronze casing
Aluminum stator housing
Stainless steel cartridge
Non metallic impeller
Ceramic shaft
Carbon bearings
The stainless steel 009 can be used in higher-head/lower-flow heat recovery, open-loop solar heating and light commercial domestic water recirculation systems
EPDM o-ring and gaskets
The unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator
Compact, direct-drive, low power consumption design is ideal for high-efficiency jobs
