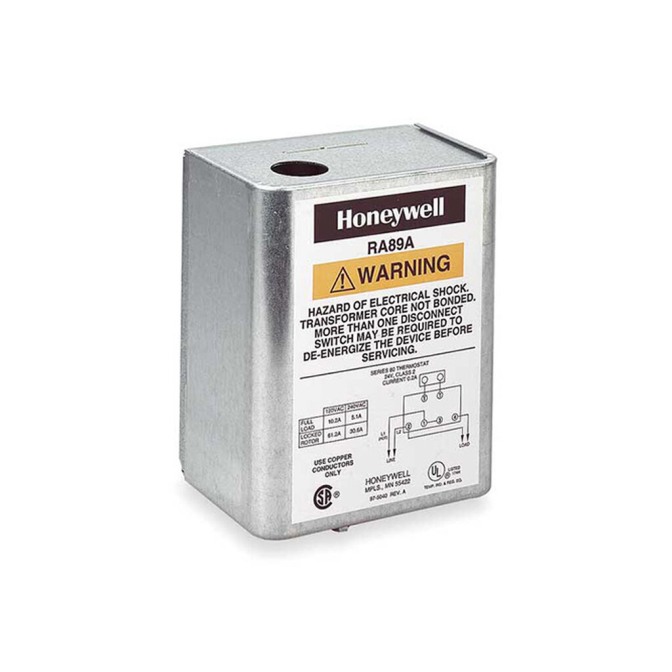

Single-Zone Switching Relay with Internal Transformer, 1 SPST Line Relay, 120VAC

Features

• Frequency Rating: 50/60 Hz
• Temperature Rating: 105 to 115 deg F
• Warranty: Limited
• Coil Voltage: 24 VAC
• Contact Form: SPST
• Contact Rating: 10.2 A at 120 VAC, 5.1 A at 240 VAC (AFL), 61.2 A at 120 VAC, 30.6 A at 240 VAC (ALR), 10 A at 120 VAC, 6 A at 240 VAC (Resistive)
• Dimensions: 5-1/4 in H x 4-1/4 in W x 2-5/16 in D
• Integral transformer provides low voltage power for control circuit
