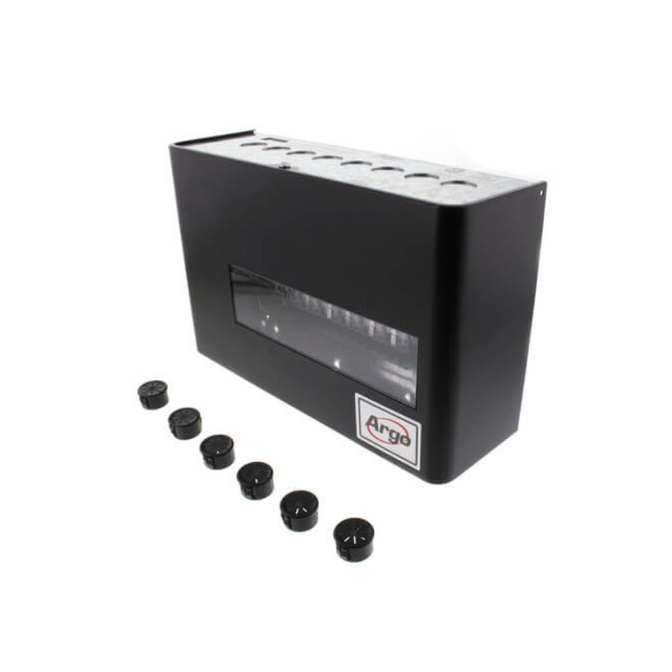

Six-Zone Switching Relay, 120 VAC
$447.23
Switching Relay 6-Zone 120 V
Description
Details
Argo Six Zone Relay, 120 V, 30 VA, 7.2 A, 60 HzFeatures
Features
- Amperage Rating: 7.2 A
- Frequency Rating: 60 Hz
- 30 VA transformer voltage
- Separate (isolated switch) and ZC/ZR relays protect boiler aquastat
- Double-sided printed circuit board construction: 100 % factory tested for reliability
- 30 VA transformer: robust enough to handle up to 15 zones
- Auto reset electronic fuse
- Priority safety timer: ensures other zones get heat every 30 min and prevents freeze-ups
- 5 sec time delay for boiler shut-off
- Premium plug-in replaceable relays
- 24 VAC transformer terminals
- Plug-in, add-on zone modules (AD-1 or AD-4)
- Switchable priority
- High relay load rating: 1/3 hp
- Clearly marked terminals with clamping plates
- Relay diagnostic light: easily seen through window on cover
