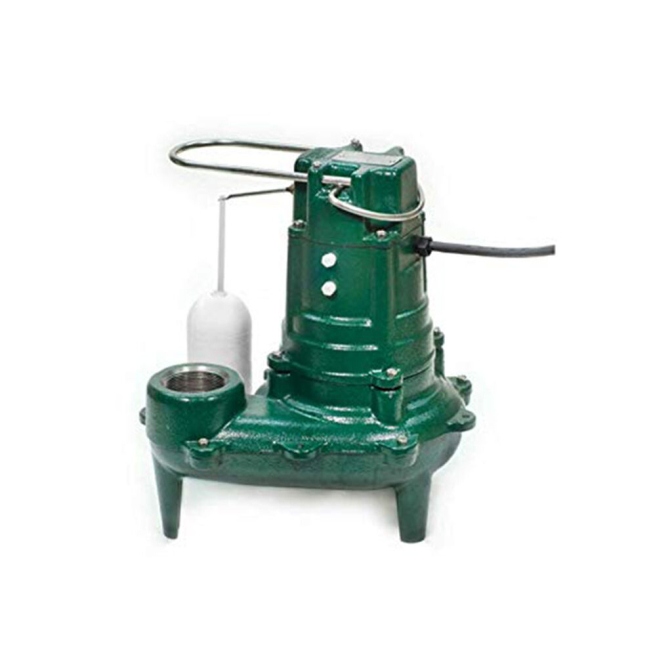

Zoeller Submersible Pump, Series: Waste-Mate 260, 128 gpm, 2 or 3 inch NPT Outlet, 21-1/2 feet Maximum Head, 1/2 hp, 115 V, 10.4 A, 60 Hz, 1750 rpm Motor, 3 Wire Neoprene Cord, Non-Clogging Vortex Impeller, 130 degree Fahrenheit, Sleeve Bearing, Cast Iron, 14-5/16 inch H
Considered one of America's most popular sewage ejectors, this robust family of pumps is known for reliability, durability and performance. These pumps are industry proven, built of cast iron with stainless steel hardware. The integral, preset snap- action float switch is engineered for one million mechanical starts. The heat-dissipating cast iron body with powder coated epoxy finish provides maximum pumping performance under the most extreme conditions. with a cool run design, the hermetically sealed, oil-filled motor and non-clogging vortex impeller add up to a long lasting, trouble-free product.
Features
Features
Float-operated and 2-pole mechanical switch
Corrosion-resistant, powder coated epoxy finish
Completely submersible
Watertight and dust-tight
Automatic and non-automatic models available
Models available packaged with piggyback variable level float switch
Minimum recommended basin size (small load applications) - simplex 18 in x 30 in (45.7 x 76.2 cm), duplex 30 in x 36 in (76.2 x 91.4 cm)
High water alarms available
10 in auto/15 in non auto, 3-wire neoprene cord and plug
Durable cast construction, ASTM Class 25 cast iron switch case and pump housing
Cap/motor housing/pump housing cast iron, base cast iron or engineered plastic
Non-clogging vortex impeller design, engineered plastic impeller with metal inserts (1 ph), model 267 available with cast iron impeller (standard on 3 ph models)
Not affected by materials normally found in drainage and sewage pumps
Stainless steel screws, bolts, handle, guard, arm and seal assembly
