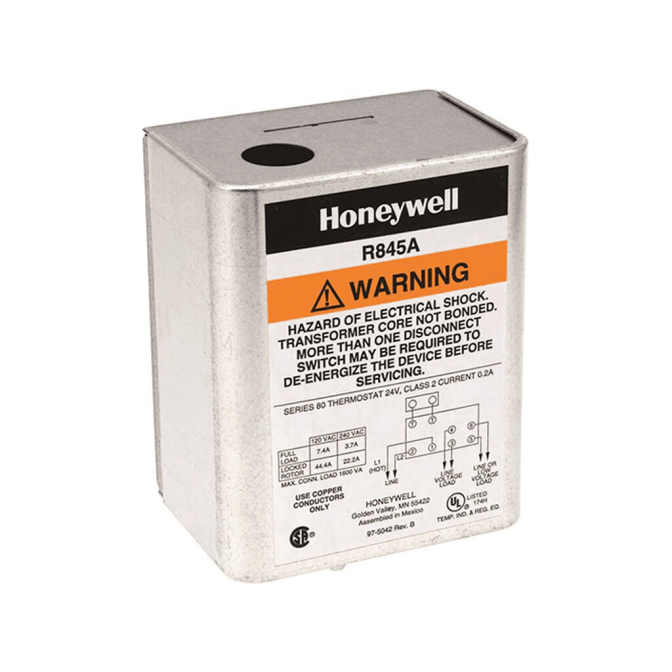

Switching Relay with Internal Transformer DPST Line Voltage Relays

Features

• Frequency Rating: 50/60 Hz
• Temperature Rating: 105 to 115 deg F
• Warranty: Limited
• Coil Voltage: 24 VAC
• Contact Form: DPST
• Contact Rating: 7.4 A at 120 VAC, 3.7 A at 240 VAC, 3 A at 120 VAC, 2 A at 240 VAC Secondary (AFL), 44.4 A at 120 VAC, 22.2 A at 240 VAC, 18 at 120 VAC, 12 A at 240 VAC Secondary (ALR), 10 A at 120 VAC, 6 A at 240 VAC (Resistive)
• Dimensions: 5-1/4 in H x 4-1/4 in W x 2-5/16 in D
• Domestic/Import: Import
• Integral transformer provides low voltage power for control circuit
• Enclosed intermediate DPST switching relay for 24 v 2-wire thermostat control of one line voltage and one line or low voltage devices
