Tank Alert Alarm System with High Level Float Switch, 120 Volts, 6 ft Cord, Indoor Use
$175.03
In stock
SKU
2036444
Description

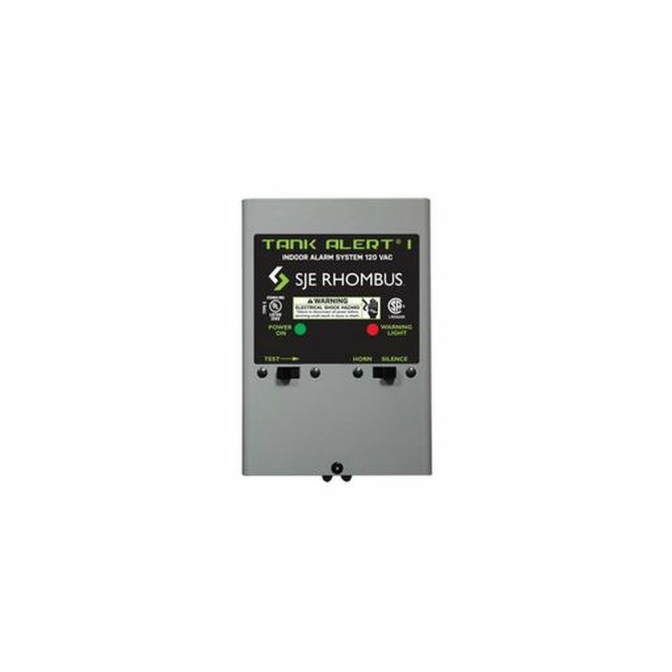

Easy-to-install liquid level alarm system for indoor use. This alarm system monitors liquid levels in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural, and other water applications. The alarm horn sounds when a potentially threatening liquid level condition occurs. The horn can be silenced, but the warning light remains on until the condition is remedied. A green "power on" light indicates power to the alarm panel.
Features
Primary power: 120 VAC, 50/60 Hz, 5 watts max. (alarm condition)
Secondary power: 12 VAC
NEMA 1 enclosure, designed for ease of installation, rated for indoor use
Red "alarm" light, green "power on" light, alarm "test" switch, and horn "silence" switch
Alarm horn sounds at 86 decibels at 10 feet
Can be used with any UL Listed / Recognized switching mechanism rated to include 1 amp, 12 VAC load
Alarm system (when installed on separate circuit) operates even if the pump circuit fails
Switching mechanism operates on low voltage and is isolated from the power line to reduce the possibility of shock
Float is 2.74" diameter x 4.83" length
Float switch connection terminal is for float switch connection only. Do not apply power. (Voltage across terminals is 12 VAC. Maximum line impedance for initiating device: 5 ohms)
UL listed
CSA certified
Five-year limited warranty
