Transformer, Foot Mounted, Plate Mounted, Clamp mounted or Panel Mounted, 120 VAC, 40VA
$21.47
Foot Mounted Plate Mounted Clamp mounted or Panel Mounted 120 Vac Transformer 40VA
Description
Details

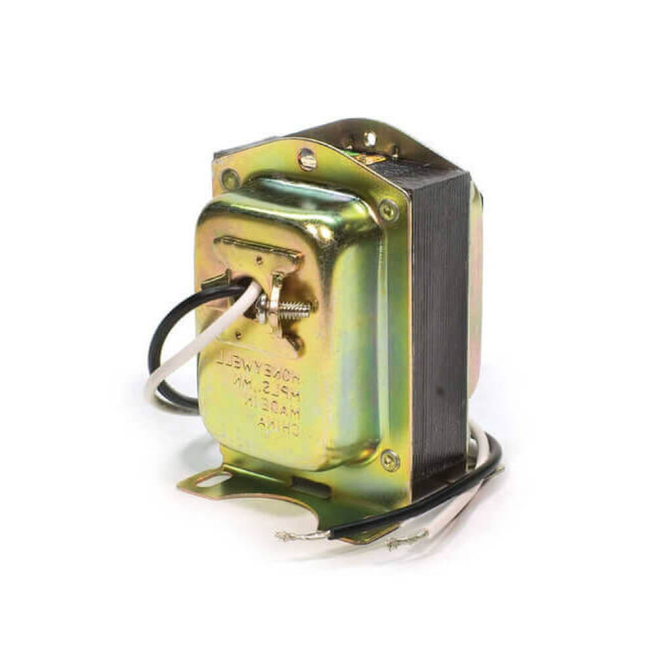

Honeywell Transformer, General Purpose, 120 VAC Primary, 27 VAC Secondary, 40 VA, 60 Hz, Universal Mount, 9 inch Lead Wires Primary, (2) Screw Terminals Secondary, -20 to 105 degree Fahrenheit, 3-3/16 inch height x 2-3/8 inch Width x 3-1/8 inch D
Honeywell 40 VA general purpose transformers power 24VAC circuits.Features
Features
- Primary Voltage: 120 VAC
- Secondary Voltage: 27 VAC
- Specifications: 9 in Lead Wires Primary, (2) Screw Terminals Secondary, -20 to 105 deg F
- Dimensions: 3-3/16 in H x 2-3/8 in W x 3-1/8 in D
- Frequency Rating: 60 Hz
- Color-coded lead wires for primary connections and screw terminals for secondary connections
- Includes fixed 1/4 in male quick-connects (AT140A models only) or color-coded lead wires for primary and secondary connections
- Meets NEC class 2 requirements and Underwriters Laboratories standard UL 1585
- Identified class 2 not wet, class 3 wet
- Mounting: foot mounted, plate mounted on 2 x 4 in or 4 x 4 in outlet box, clamp mounted using outlet box knockout or panel mounted
- 24 VAC at 40 VA
