Transformer with 9" Lead Wires, Foot Mounted, Plate Mounted, Clamp mounted or Panel Mounted, 120/208/240 VAC, 50VA
$29.52
Foot Mounted Plate Mounted Clamp mounted or Panel Mounted 120/208/240 V Transformer with 9 inch Lead Wires 50VA
Description
Details

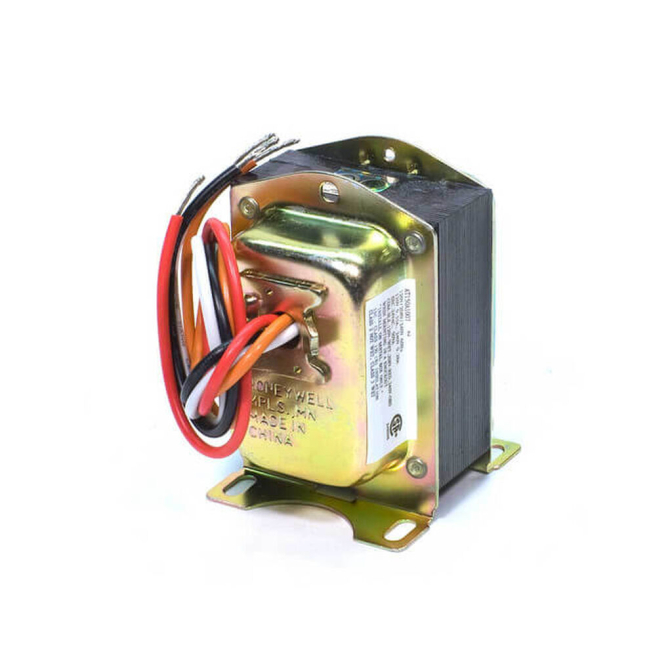

Honeywell Transformer, General Purpose, 120 VAC Primary, 27.5 VAC Secondary, 50 VA, 60 Hz, Foot Mount, 9 inch Lead Wires Primary, (2) Screw Terminals Secondary, -20 to 105 degree Fahrenheit, 1-11/16 inch height x 3-3/16 inch Width x 1-3/4 inch D
Honeywell 50 VA general purpose transformers power 24VAC circuits.Features
Features
- Primary Voltage: 120 VAC
- Secondary Voltage: 27.5 VAC
- Specifications: 9 in Lead Wires Primary, (2) Screw Terminals Secondary, -20 to 105 deg F
- Dimensions: 1-11/16 in H x 3-3/16 in W x 1-3/4 in D
- Frequency Rating: 60 Hz
- Color-coded lead wires for primary connections and screw terminals for secondary connections
- Includes fixed 1/4 in male quick-connects (AT150A models only) or color-coded lead wires for primary and secondary connections
- Meets Underwriters Laboratories standard UL 1585
- Identified class 2 not wet, class 3 wet
- Mounting: foot mounted, plate mounted on 2 x 4 in or 4 x 4 in outlet box, clamp mounted using outlet box knockout or panel mounted
- 24 VAC at 50 VA
