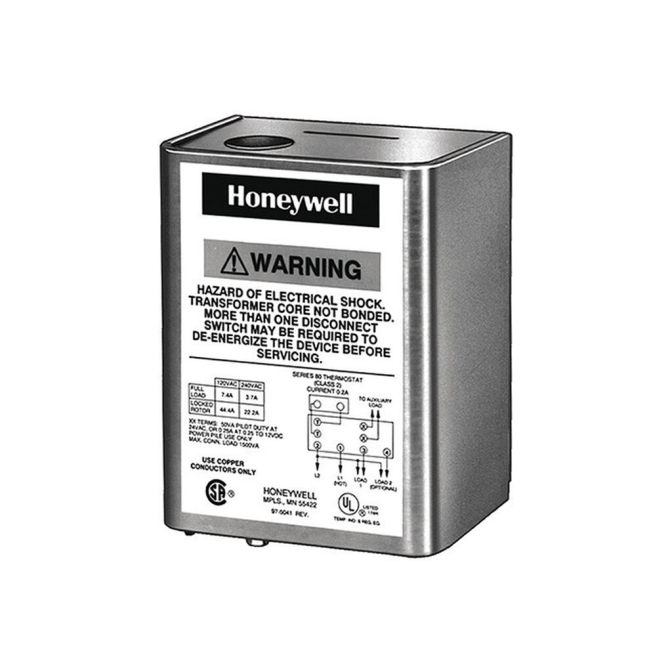

Two-Zone Switching Relay with DPST Switching, 120VAC
$127.92
In stock
SKU
26754
Switching Relay with Dpst switching 2-Zone 120V
Description
Details
Honeywell Switching Relay, 120 VAC, 5 W, 50/60 Hz, 24 VAC Coil, DPST, 7.4 A at 120 VAC, 3.7 A at 240 VAC, 3 A at 120 VAC (AFL), 44.4 A at 120 VAC, 22.2 A at 240 VAC (ALR), 10 A at 120 VAC, 6 A at 240 VAC (Resistive) Contact, 105 to 115 degree Fahrenheit, 5-1/4 inch height x 4-1/4 inch Width x 2-5/16 inch D
Provide intermediameterte switching of a line voltage device from a low voltage controller.
Features
Features
Frequency Rating: 50/60 Hz
Temperature Rating: 105 to 115 deg F
Warranty: Limited
Coil Voltage: 24 VAC
Contact Form: DPST
Contact Rating: 7.4 A at 120 VAC, 3.7 A at 240 VAC, 3 A at 120 VAC (AFL), 44.4 A at 120 VAC, 22.2 A at 240 VAC (ALR), 10 A at 120 VAC, 6 A at 240 VAC (Resistive)
Dimensions: 5-1/4 in H x 4-1/4 in W x 2-5/16 in D
Domestic/Import: Import
Integral transformer provides low voltage power for control circuit
The RA832A is a TPST relay, one relay pole is designed for low voltage or millivoltage (PowerPile) auxiliary load, two other relay poles are for line voltage loads
