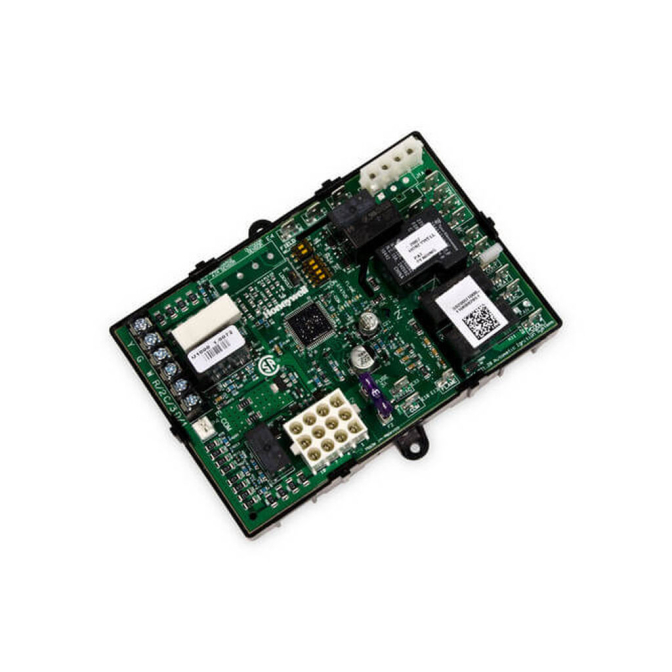

Universal Hot Surface Ignition Integrated Furnace Control, 120VAC
$184.77
In stock
SKU
1870775
Universal Hot Surface Ignition Integrated Furnace Control 120V
Description
Details
Honeywell Integrated Furnace Control, Hot Surface Ignition, 120 VAC, 17/27 or 30/30 sec Igniter Warm-Up Time, 30 sec Prepurge, 5.6 inch Width, 7.6 inch Depth, 3-1/2 inch Height
Universal Integrated Furnace Control offers universal compatibility and diametergnostics. It replaces a large number of furnace control models inch single-stage warm air furnaces. Uses 120VAC hot surface igniter. Includes instructions and special wire harnesses for easy replacement.
Features
Features
Prepurge Time: 30 sec
Primary Voltage: 120 VAC
Depth: 7.6 in
Warranty: Limited
Width: 5.6 in
Domestic/Import: Import
Height: 3-1/2 in
Igniter Warm-Up Time: 17/27 or 30/30 sec
Cross reference and wire harnesses provided for simple replacement over 195 existing furnace controls
Main burner ignition using a 120 V hot surface igniter
Flame rectification circuit to monitor flame presence
Monitoring of system pressure switch, high temperature limit and rollout functions
Appliance operation or safety requirements controlled via microprocessor
Controls circulating fan motor based on appliance requirements, in response to a conventional low voltage thermostat
LED system status, performance and diagnostic indication
