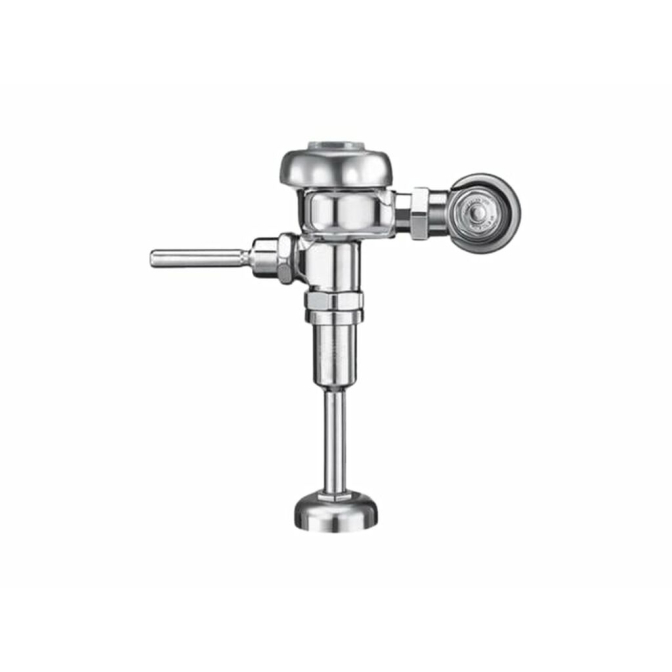

Urinal Flushometer for use with 3/4" Top Stud Urinals, 1.5 gpf, 186XL Series
$139.53
Urinal Flushometer for use with 3/4 inch Top Stud Urinals 1.5 gpf 186XL Series
More Information | Material | Semi-Red Brass |
|---|
Description
Details
Sloan REGAL 186, Urinal Fixture, 1.5 gpf Flush, 3/4 inch IPS Inlet, 3/4 inch Spud Coupling, Diaphragm, Connection Location: Top Spud, Non-Hold-Open Oscillating Handle, Semi-Brass, Polished Chrome Finish/ColorFeatures
Features
- ADA compliant metal oscillating non-hold-open handle
- Diaphragm, handle packing and vacuum breaker to be molded from PERMEX rubber compound for chloramine resistance
- Valve body, cover and tailpiece shall be in conformance with ASTM Alloy classification for semi-red brass
- Adjustable tailpiece
- REGAL 186 XL
- 1 in IPS screwdriver Bak-Chek angle stop
- Control stop plug
- Sweat solder adapter with cover tube
- Cast wall flange with set screw
- Vacuum breaker flush connection
- Spud coupling and spud flange for 1-1/2 in back spud
- Non-hold-open handle and no external volume adjustment to ensure water conservation
- Low consumption flush accuracy controlled by Para-Flo technology
- Inlet Size: 3/4 in IPS
- Spud Coupling: 3/4 in
- Type: Single Flush, Urinal
- Valve Design: Diaphragm
- Connection Location: Top Spud
- Domestic/Import: Domestic
- Finish: Polished Chrome
- Flow Rate: 1.5 gpf
- Handle Style: Non-Hold Open Oscillating
