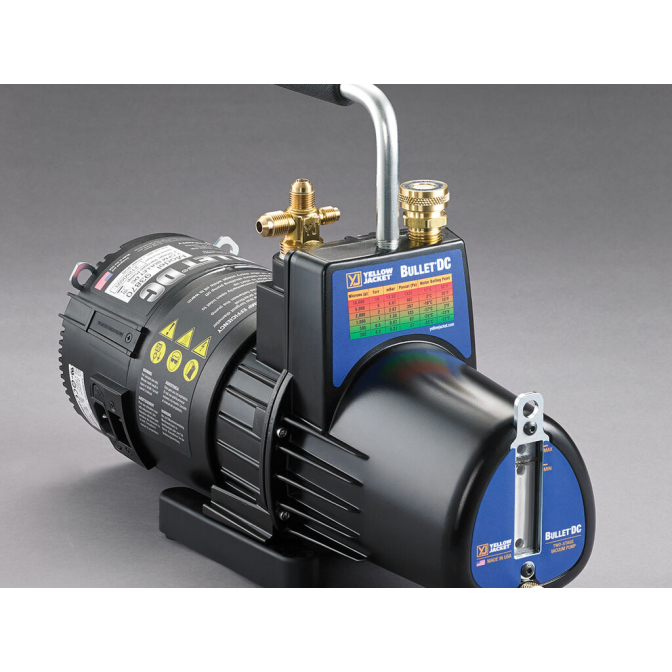

The Yellow Jacket 93870 BULLET DC Vacuum Pump Brushless DC (BLDC) Motor provides key advantages over existing AC technology vacuum pumps. High torque and high efficiency define the ultimate performance in the most reliable vacuum pump. Able to function in extreme low voltage conditions and field rated to 25 microns, the BULLET DC is the perfect combination of quality and value. The easy-to-carry, lightweight design is available in 7 cfm to handle most residential and commercial applications. Pulling down to less than 25 microns, BULLET DC protects the system from contaminants and non-condensable gases, which can damage components, reduce efficiency, and cause a system failure.
Features
Designed for use with A2L systems
Built-in mount points for optional shoulder strap (sold separately – PN 92965)
Elongated oil sight glass – easier to see oil level and condition
Internal intake check valve to help prevent oil backup into the system during a power failure
Intake filter screen keeps damaging particles from entering the pump
Heavy duty rotors and bearings
Wide mouth oil reservoir port for easier, cleaner filling. Doubles as a pump exhaust- threaded to attach a garden hose for exhausting to a remote location.
Large brass oil drain for easy access to fast oil changes
Small oil bath requires less oil
Built-in cooling fins to cool pump and increase performance
Downward angled oil sump to remove contaminants usually trapped in other pump designs
Non-sparking switch for A2L compliance
Locking low-profile IEC connector with 9’10” (3 meter) power cord to prevent accidental removal
Heavy duty steel handle
PX4 Rating – resistant to water splashes from any direction
Two-year warranty
Made in USA
