Valve Control Module with Priority, 3-Zone, 120 VAC
$144.04
In stock
SKU
200336
Valve Control Module with Priority 3-Zone 120 VAC
Description
Details

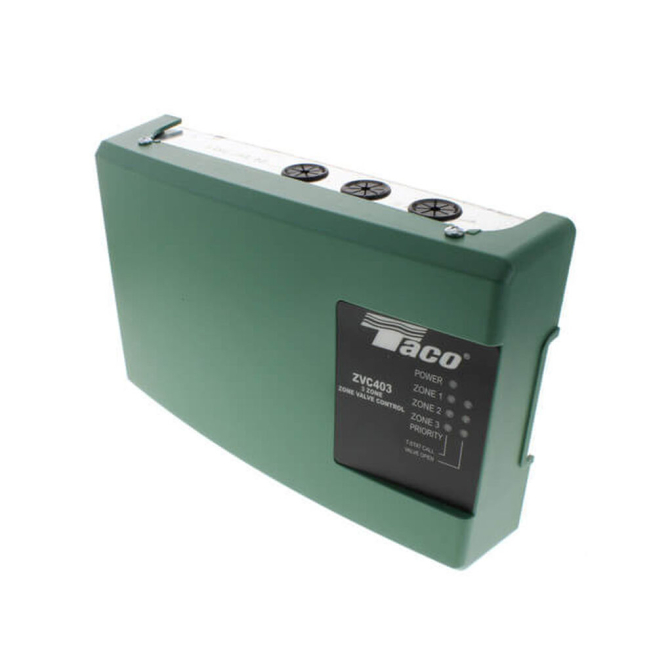

Taco Comfort Solutions Zone Valve Control, 3 Zones, 120 VAC, 40 VA for use with: 2, 3, and 4-Wire Zone Valves, 7 inch Height, 10-1/4 inch Width, 2-3/4 inch Depth
Taco Zone Valve Controls work with two, three or four-wire zone valves. Fully fuse protected, they also include two isolated end switches and built-in priority protection. The contractor friendly PC board layout eliminates the problems caused by incorrect wiring and the unfinished look of conventional zone valve installations. The sturdy screw connections add additional reliability, while the external indicator lights provide instant diametergnostic feedback, reducing installation time. All Taco Zone Valve Controls are UL listed and carry an extended 3 year warranty
Features
Features
Suitable For Use With: 2, 3 and 4-Wire Zone Valves
Primary Voltage: 120 VAC
Warranty: 3 Year
Width: 10-1/4 in
Depth: 2-3/4 in
Height: 7 in
Front diagnostic lights
Contractor friendly PC board layout
Universal thermostat compatibility
24 V power output for hard wired thermostats
Field replaceable transformer
Switchable priority
Built-in priority protection
Simplified wiring
Works with 2, 3, or 4-wire zone valves
Compact design
Fuse protected
100 percent factory tested
Two pump end switches can control up to 3 pumps, system, secondary and DHW
