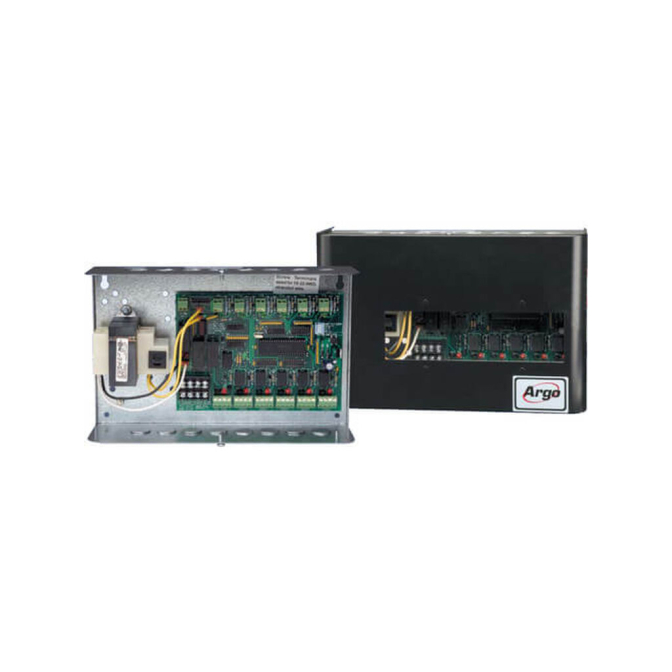

Valve Controller with Built-in Circulator or Zone Valve Priority Option, 4-Zone
$281.57
Valve Controller with Built-in Circulator or Zone Valve Priority Option 4-Zone
Description
Details
Argo Zone Valve Control, 4 Zones, 120 V, 4 inch Height, 8 inch WidthFeatures
Features
- Primary Voltage: 120 V
- Width: 8 in
- Height: 4 in
- 60 Hz frequency
- Priority on: indicates priority mode is selected
- Primary pump: indicates primary pump is energized
- Priority pump: indicates the priority zone pump is energized
- X-X Contact: indicates x-x contact is closed and calling for heat from the boiler
- ZR on: indicates ZR-ZC dip switch is in the on position, priority zone is calling, and ZR-ZC terminals are energized
- Thermostat terminals (class 2)
- Green indicator LED: indicates zone is calling for heat
- Field selectable option dip switches (see field selectable option switches in this manual for explanation)
- Red indicator LED: indicates zone valve is fully open
- Zone valve terminals (class 2)
- 40 VA transformer voltage
- ZC on green indicator LED
- SPST relay switching action
- 7.2 A total drawn (120 VAC)
- Transformer spade terminals (120 VAC) (primary)
- Transformer spade terminals (24 VAC) (class 2)
- Isolated end switch
- Data port terminal: used for communication with the argo DPM-2 outdoor temperature setback control
- Status LED: flashes during normal operation
