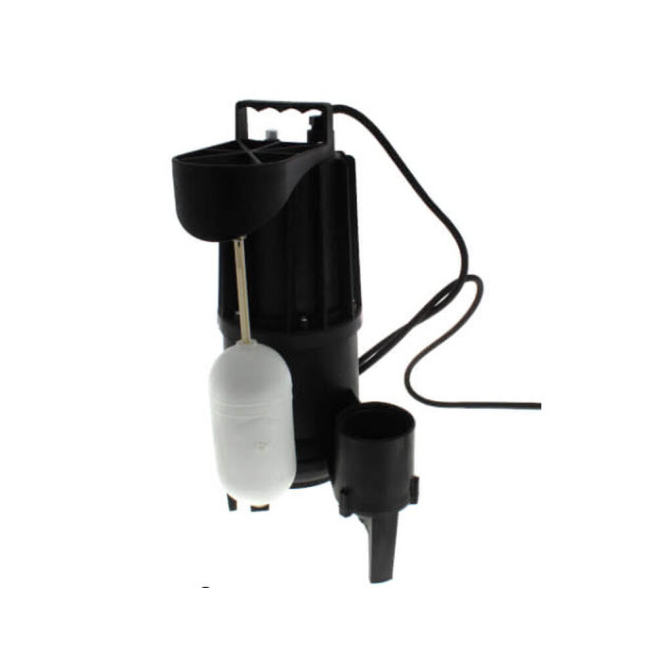

Thermoplastic Sewage Pump with Vertical Float Switch
More Information
Diameter
4" x 3"
Material
Plastic
Description
Details
Zoeller Submersible Pump, Single Phase Single Seal, Series: Aqua-Mate, 82 gpm, 2 inch NPT Outlet, 115 V, 5.5 A, 4/10 hp, 19-1/2 feet Maximum Head, 2 inch NPT Discharge Pipe Size, Single Phase, 3400 rpm, Class B Insulation, 110 degree Fahrenheit, 2 inch Spherical Solids Handling, Plastic
The "Aqua-Mate" series of submersible pumps is designed for use inch residential or light commercial dewatering and wastewater applications and can be used to transfer effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2 inch spherical solids. These pumps are constructed of a non-corrodible engineered plastic motor housing, pump housing, base and impeller. All models are constructed with all stainless steel screws, and automatic models feature a stainless steel switch arm and a solid polypropylene float. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature of every pump inch this series, making it one of the most reliable inch the industry.
Features
Features
Submersible pumps for sewage/effluent or dewatering, pass 2 in spherical solids, 2 in NPT discharge
Watertight and dust tight
Automatic/non-automatic models available
Note: recommended for 2 in pipe only
Sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles or dosing timers with non-automatic pumps
Reserve powered design
For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump
10 ft auto/15 ft non auto, 3-prong plug cord type
Auto reset thermal overload motor protection
Upper and lower ball bearing
Engineered plastic for pump housing/base/impeller
No sheet metal parts to rust or corrode
Carbon and ceramic for mechanical seals, non-clogging vortex impeller type, stainless steel hardware, 410 stainless steel motor shaft, Buna-N O-ring gasket
All stainless steel screws, switch arm and lower motor housing
2 pole float operated mechanical switch
Solid polypropylene float
Maximum temperature for dewatering: 110 deg F (43 deg C)
On point - 13 in, off point - 5-3/4 in
15-7/8 in H x 9-5/16 in W
All models completely submersible and hermetically sealed
Outlet Size: 2 in NPT
Solids Handling: 2 in Spherical
Specifications: Single Phase, 3400 rpm, Class B Insulation
